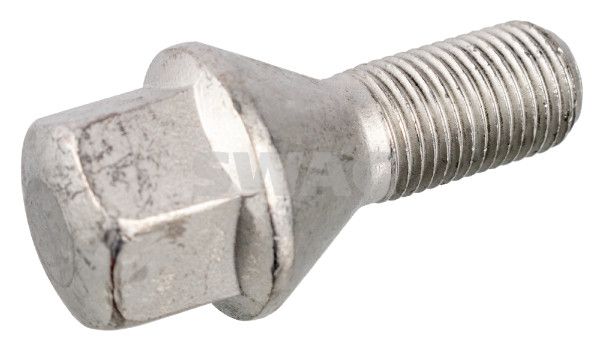

Wheel Bolt

70 91 9341 Catalog number:

Manufacturer: SWAG Rims : for light alloy rims Rims : for steel rims Length [mm] : 49 Outer diameter [mm] : 23 External Thread Size : M12 x 1,25 Thread Length [mm] : 22 Quality/ Grade : 10.9 Spanner Size : 17 Bolt Head-/Nut Design : External Hexagon Wheel Fastening : Conical Seat F Material : Steel Screw length below head [mm] : 22 Fitting Position : Front Axle Fitting Position : Rear Axle for OE number : 11294235 Observe service information

Additional information

Product description Wheel Bolt VW GOLF VAN IV Variant (1J5)

Rims : for light alloy rims Rims : for steel rims Length [mm] : 49 Outer diameter [mm] : 23 External Thread Size : M12 x 1,25 Thread Length [mm] : 22 Quality/ Grade : 10.9 Spanner Size : 17 Bolt Head-/Nut Design : External Hexagon Wheel Fastening : Conical Seat F Material : Steel Screw length below head [mm] : 22 Fitting Position : Front Axle Fitting Position : Rear Axle for OE number : 11294235 Observe service information

Suitable vehicles

ALFA ROMEO

CITROËN

FIAT

FORD

LANCIA

OPEL

PEUGEOT

VAUXHALL

ABARTH

Zastosowanie własne

OEM numbers

ALFA ROMEO: 11294235 ALFA ROMEO: 13230325 ALFA ROMEO: 13230335 ALFA ROMEO: 13230425 ALFA ROMEO: 13230435 CITROËN: 16 073 709 80 CITROËN: 16 126 157 80 CITROËN: 5405.83 FIAT: 11294235 FIAT: 13230325 FIAT: 13230335 FIAT: 13230425 FIAT: 13230435 FORD: 1 559 373 FORD: 1 850 468 LANCIA: 11294235 LANCIA: 13230325 LANCIA: 13230335 LANCIA: 13230425 LANCIA: 13230435 OPEL: 10 08 011 PEUGEOT: 16 073 709 80 PEUGEOT: 16 126 157 80 PEUGEOT: 5405.83 VAUXHALL: 095510864 VAUXHALL: 95510864 GENERAL MOTORS: 095510864 GENERAL MOTORS: 95510864 RAM: 68230868AA ABARTH: 11294235 FORD MOTOR COMPANY: W303433
