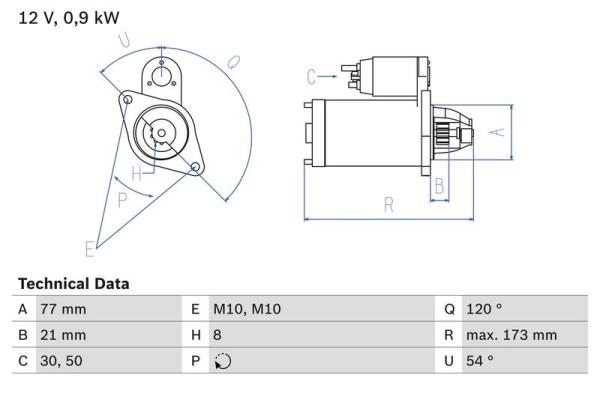

Starter
BSH0986025720
Catalog number:
Manufacturer:
Bosch
Exchange Part
Voltage [V] : 12
Rated Power [kW] : 0,9
Number of mounting bores : 2
Number of threaded holes : 2
Number of Teeth : 8
Clamp : 30,50
Flange Diameter [mm] : 77
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 21
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Length [mm] : 173
Position/Degree : links
Mounting Angle [degrees] : 54
Jaw opening angle measurement [Degree] : 120
Mounting bore angle measurement [degree] : 54
