Starter
0 986 023 730
Catalog number:
Manufacturer:
BOSCH
Exchange Part

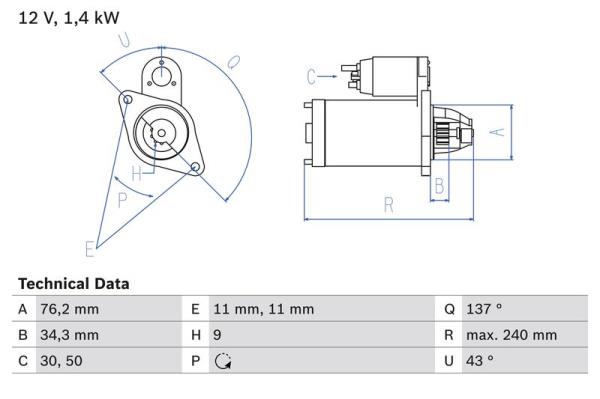

Voltage [V] : 12
Rated Power [kW] : 1,4
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 76,2
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 34,3
Starter Type : Self-supporting
Bore Diameter [mm] : 11
Bore Diameter 2 [mm] : 11
Length [mm] : 240
Position/Degree : links
Mounting Angle [degrees] : 43
Jaw opening angle measurement [Degree] : 137
Mounting bore angle measurement [degree] : 43
