Starter
0 986 018 060
Catalog number:
Manufacturer:
BOSCH
Exchange Part

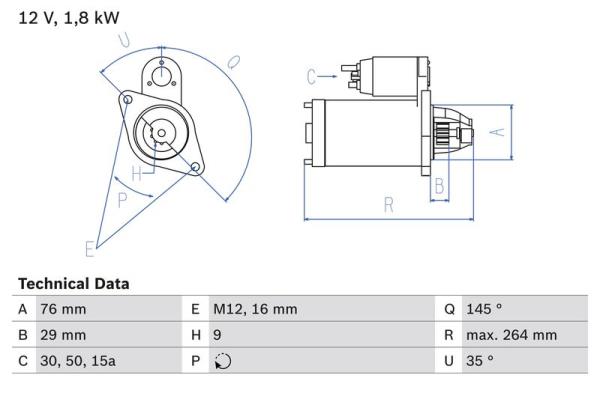

Voltage [V] : 12
Rated Power [kW] : 1,8
Number of mounting bores : 1
Number of threaded holes : 1
Number of Teeth : 9
Clamp : 15a
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 76
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 29
Starter Type : Self-supporting
Thread Size : M12
Bore Diameter 2 [mm] : 16
Length [mm] : 264
Position/Degree : links
Mounting Angle [degrees] : 35
Jaw opening angle measurement [Degree] : 145
Mounting bore angle measurement [degree] : 35
