Starter
0 001 362 307
Catalog number:
Manufacturer:
BOSCH
Voltage [V] : 12
Rated Power [kW] : 2,7
Number of mounting bores : 3
Number of threaded holes : 0
Number of Teeth : 12
Clamp : 50
Clamp : 30

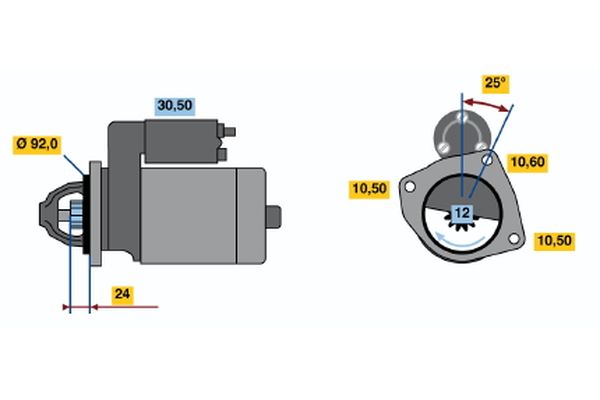

Flange Diameter [mm] : 92
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 21
Starter Type : Self-supporting
Bore Diameter [mm] : 10,5
Bore Diameter 2 [mm] : 10,5
Bore Ø 3 [mm] : 10,5
Length [mm] : 293
Position/Degree : rechts
Mounting Angle [degrees] : 25
Jaw opening angle measurement [Degree] : 100
Mounting bore angle measurement [degree] : 25
