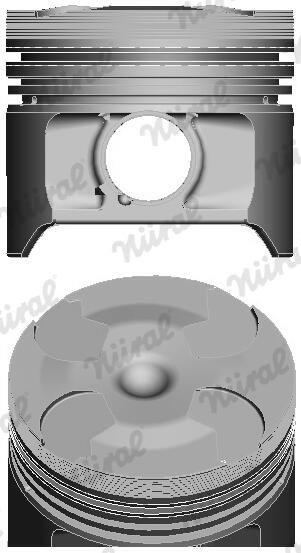

Piston
87-743600-30
Catalog number:
Manufacturer:
NÜRAL
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Recess Depth 1 [mm] : 4,6
Piston Clearance [mm] : 0,04
Piston Protrusion [mm] : 1,32
Compression Height [mm] : 44,9
Height [mm] : 76,2
Cylinder Bore [mm] : 87
Bolt Head Diameter [mm] : 26
Bolt Length [mm] : 55
Valve Pocket Depth 1 [mm] : 2,26
Valve Pocket Depth 2 [mm] : 2,41
Component Number : 08-743600-00
Standard Size [STD]
