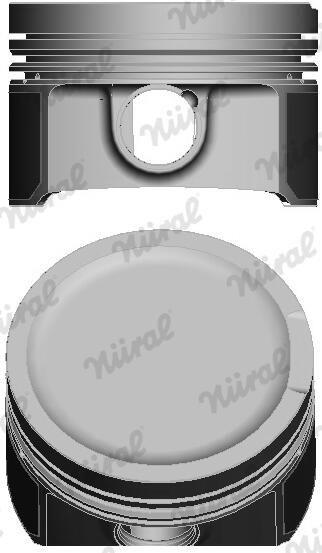

Piston
87-502905-10
Catalog number:
Manufacturer:
NÜRAL
Recess Depth 1 [mm] : 2,05
Oversize [mm] : 0,25
Compression Height [mm] : 32,7
Height [mm] : 53,7
Cylinder Bore [mm] : 81,25
Bolt Head Diameter [mm] : 20
Recess Diameter [mm] : 70
Bolt Length [mm] : 59
Component Number : 08-502905-00
Machined : with cut-out for oil jet
