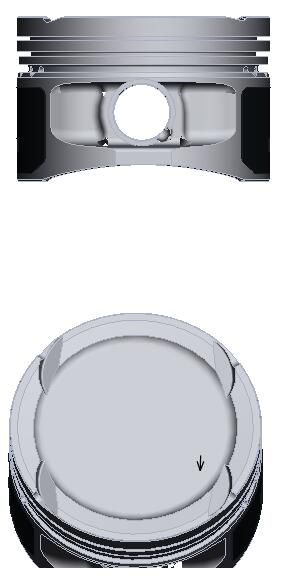

Piston
87-447800-10
Catalog number:
Manufacturer:
NÜRAL
Recess Depth 1 [mm] : 4,11
Compression Height [mm] : 29,27
Height [mm] : 49,3
Cylinder Bore [mm] : 76,5
Bolt Head Diameter [mm] : 17
Recess Diameter [mm] : 62,5
Bolt Length [mm] : 46
Valve Pocket Depth 1 [mm] : 1,25
Valve Pocket Depth 2 [mm] : 2,8
Component Number : 08-447800-00
Surface : Hard Anodized
Standard Size [STD]
