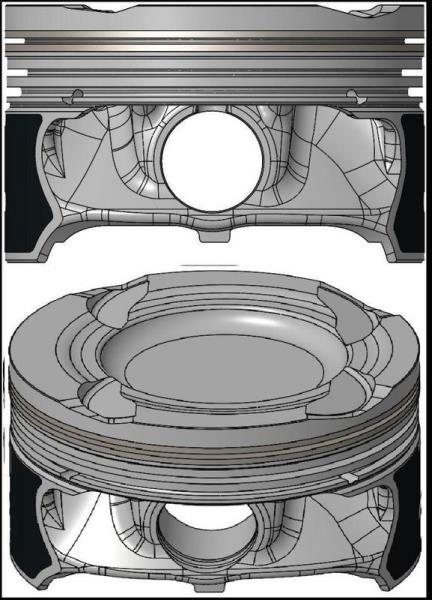

Piston
87-440500-40
Catalog number:
Manufacturer:
NÜRAL
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Supplementary Article/Supplementary Info 2 : for keystone connecting rod
Recess Depth 1 [mm] : 6
Compression Height [mm] : 30,9
Height [mm] : 50,9
Cylinder Bore [mm] : 83
Bolt Head Diameter [mm] : 20
Recess Diameter [mm] : 68
Bolt Length [mm] : 51
Valve Pocket Depth 1 [mm] : 3,3
Valve Pocket Depth 2 [mm] : 3,15
Component Number : 08-440500-30
Standard Size [STD]
Filled
