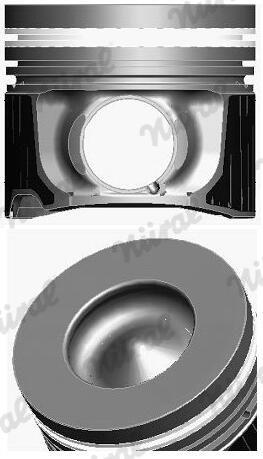

Piston
87-434300-00
Catalog number:
Manufacturer:
NÜRAL
Supplementary Article/Supplementary Info 2 : with cooling duct
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Recess Depth 1 [mm] : 15,1
Piston Clearance [mm] : 0,06
Compression Height [mm] : 46,3
Height [mm] : 70,8
Cylinder Bore [mm] : 83
Bolt Head Diameter [mm] : 30
Recess Diameter [mm] : 45
Bolt Length [mm] : 68
Component Number : 08-434300-00
Machined : with cut-out for oil jet
Standard Size [STD]
