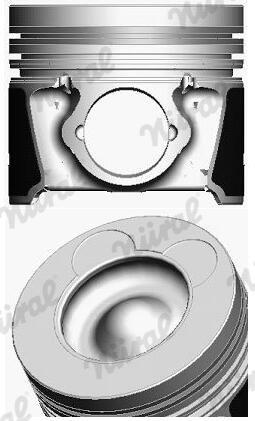

Piston
87-434200-00
Catalog number:
Manufacturer:
NÜRAL
Supplementary Article/Supplementary Info 2 : with cooling duct
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Recess Depth 1 [mm] : 12,7
Recess Depth 2 [mm] : 2,8
Piston Clearance [mm] : 0,06
Compression Height [mm] : 41,95
Height [mm] : 65,7
Cylinder Bore [mm] : 77,2
Bolt Head Diameter [mm] : 28
Recess Diameter [mm] : 18,2
Bolt Length [mm] : 62
Valve Pocket Depth 1 [mm] : 0,5
Component Number : 08-434200-00
Machined : with cut-out for oil jet
Standard Size [STD]
Container Type : Box
Packaging length [cm] : 8,5
Packaging width [cm] : 8,5
Packaging height [cm] : 9,5
