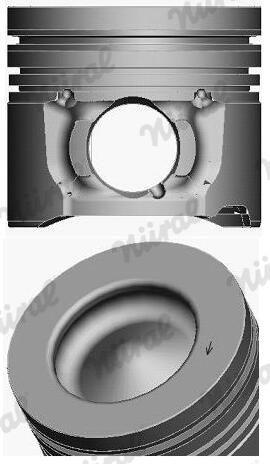

Piston
87-433600-00
Catalog number:
Manufacturer:
NÜRAL
Supplementary Article/Supplementary Info 2 : with cooling duct
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Supplementary Article/Supplementary Info 2 : for keystone connecting rod
Recess Depth 1 [mm] : 13,85
Piston Clearance [mm] : 0,06
Compression Height [mm] : 41,75
Height [mm] : 65,2
Cylinder Bore [mm] : 75
Bolt Head Diameter [mm] : 26
Recess Diameter [mm] : 45
Bolt Length [mm] : 61
Component Number : 08-433600-00
Machined : with cut-out for oil jet
Standard Size [STD]
