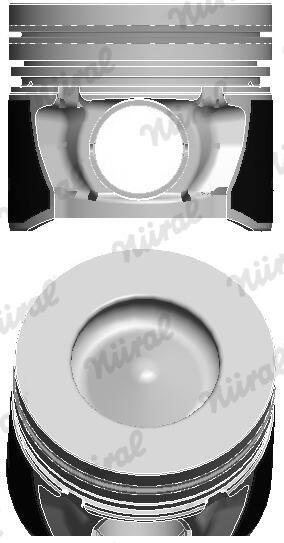

Piston
87-431900-00
Catalog number:
Manufacturer:
NÜRAL
Supplementary Article/Supplementary Info 2 : with bush for piston pin boss
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Recess Depth 1 [mm] : 13,9
Compression Height [mm] : 46,3
Height [mm] : 72,3
Cylinder Bore [mm] : 83
Bolt Head Diameter [mm] : 28
Recess Diameter [mm] : 46,95
Bolt Length [mm] : 66
Component Number : 08-431900-00
Machined : with cut-out for oil jet
Standard Size [STD]
