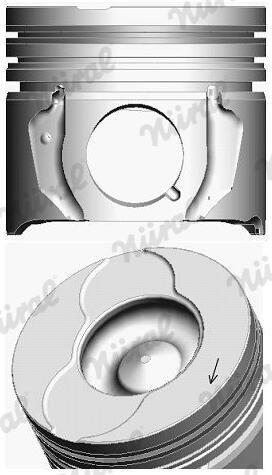

Piston
87-424100-00
Catalog number:
Manufacturer:
NÜRAL
Supplementary Article/Supplementary Info 2 : with cooling duct
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Recess Depth 1 [mm] : 14,7
Compression Height [mm] : 41,94
Height [mm] : 64,4
Cylinder Bore [mm] : 73
Bolt Head Diameter [mm] : 27
Recess Diameter [mm] : 36,5
Bolt Length [mm] : 59
Valve Pocket Depth 1 [mm] : 0,9
Valve Pocket Depth 2 [mm] : 0,9
Component Number : 08-424100-00
Standard Size [STD]
Packaging length [cm] : 8,5
Packaging width [cm] : 8,5
Packaging height [cm] : 9,5
