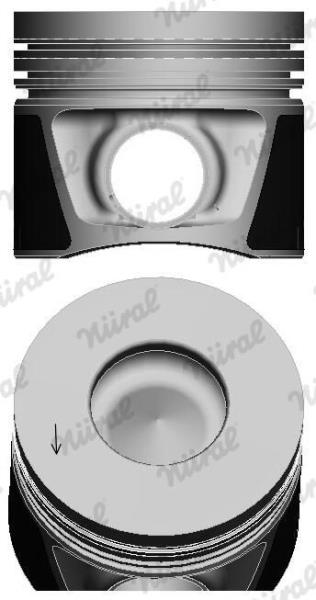

Piston
87-139500-00
Catalog number:
Manufacturer:
NÜRAL
Production Number : 07901J
Supplementary Article/Supplementary Info 2 : with bush for piston pin boss
Supplementary Article/Supplementary Info 2 : with cooling duct
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Supplementary Article/Supplementary Info 2 : for keystone connecting rod
Recess Depth 1 [mm] : 17,8
Piston Clearance [mm] : 0,06
Compression Height [mm] : 45,8
Height [mm] : 68,8
Cylinder Bore [mm] : 81
Bolt Head Diameter [mm] : 26
Recess Diameter [mm] : 38
Bolt Length [mm] : 66
Component Number : 08-139500-00
Machined : with cut-out for oil jet
Standard Size [STD]
Piston Chamber Volume [cm³] : 23,75
