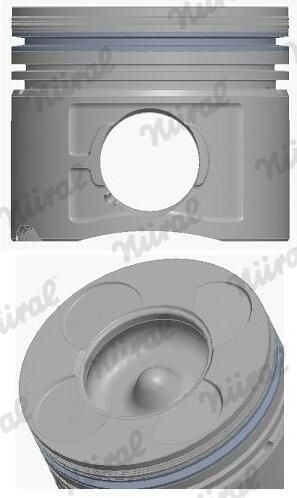

Piston
87-114405-30
Catalog number:
Manufacturer:
NÜRAL
Production Number : 08408-F105
Supplementary Article/Supplementary Info 2 : with bush for piston pin boss
Supplementary Article/Supplementary Info 2 : with cooling duct
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Recess Depth 1 [mm] : 13,5
Oversize [mm] : 0,25
Compression Height [mm] : 44,87
Height [mm] : 70,6
Cylinder Bore [mm] : 84,25
Bolt Head Diameter [mm] : 30
Recess Diameter [mm] : 46,9
Bolt Length [mm] : 66
Valve Pocket Depth 1 [mm] : 1,4
Component Number : 08-114405-00
Machined : with cut-out for oil jet
