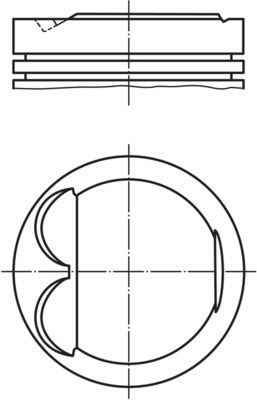

Piston
082 67 00
Catalog number:
Manufacturer:
MAHLE
Standard Size [STD]
Cylinder Bore [mm] : 80,00
Length [mm] : 50,8
Compression Height [mm] : 31,64
Bolt Length [mm] : 51,0
Bolt Head Diameter [mm] : 22,0
Valve Pocket Depth 1 [mm] : 2,94
Surface : Tin-plated
Top Land Height [mm] : 7
Production Number : 80 V 204
Piston Clearance [mm] : 0,02
Component Number : 1. R 1.5 Cr
Component Number : 2. NM 1.5
Component Number : 3. SSF 2.0
Packaging height [cm] : 12,80
Net Weight [g] : 429
Packaging length [cm] : 9,5
Packaging width [cm] : 9,50
