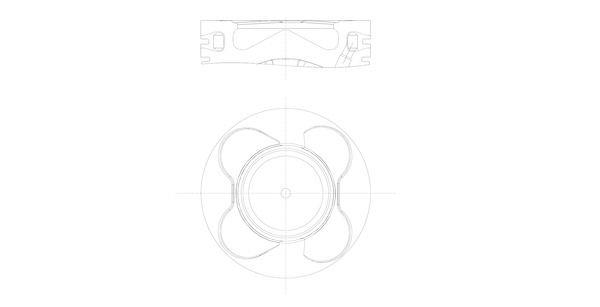

Piston

Manufacturer: Mahle Cylinder Bore [mm] : 84,0 Length [mm] : 71,0 Compression Height [mm] : 45,0 Bolt Length [mm] : 64,0 Bolt Head Diameter [mm] : 30,0 Recess Depth 1 [mm] : 15,33 Recess Diameter [mm] : 48,1 Valve Pocket Depth 1 [mm] : 1,6 Valve Pocket Depth 2 [mm] : 1,54 Machined : with cut-out for oil jet Supplementary Article/Supplementary Info 2 : with piston ring carrier Supplementary Article/Supplementary Info 2 : with cooling duct Top Land Height [mm] : 9,15 Supplementary Article/Supplementary Info : cooled piston ring carrier Production Number : 84 L 91 Piston Clearance [mm] : 0,045 Component Number : 1. R 2.5 CrK Component Number : 2. NM 2.0 Component Number : 3. DSF 2.0 Cr Packaging height [cm] : 12,80 Net Weight [g] : 600 Packaging length [cm] : 9,5 Packaging width [cm] : 9,50
