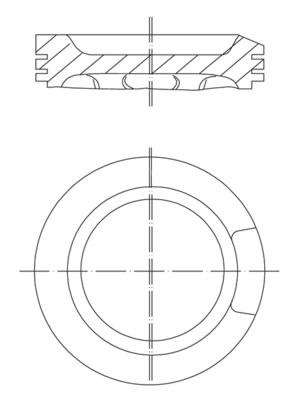

Piston

Manufacturer: MAHLE Cylinder Bore [mm] : 81,51 Length [mm] : 53,4 Compression Height [mm] : 32,4 Bolt Length [mm] : 59,0 Bolt Head Diameter [mm] : 20,0 Recess Depth 1 [mm] : 1,5 Recess Diameter [mm] : 70,0 Machined : with cut-out for oil jet Surface : Coated Top Land Height [mm] : 8,0 Production Number : 81 P 27 Component Number : 1. M 1.5 Mo P Component Number : 2. NM 1.75 Component Number : 3. DSF 2.0 Cr Packaging height [cm] : 12,80 Net Weight [g] : 440 Packaging length [cm] : 9,5 Packaging width [cm] : 9,50
