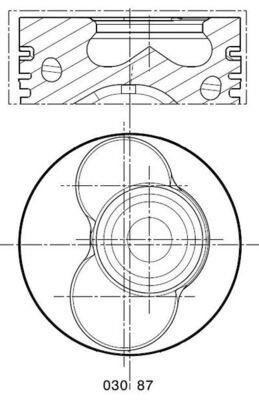

Piston

Manufacturer: MAHLE Fitting Position : to cylinder 3 Fitting Position : to cylinder 4 Fitting Position : for cylinder 3-4 Cylinder Bore [mm] : 80,01 Length [mm] : 69,8 Compression Height [mm] : 45,55 Bolt Length [mm] : 66,0 Bolt Head Diameter [mm] : 26,0 Recess Depth 1 [mm] : 17,5 Recess Diameter [mm] : 38,0 Valve Pocket Depth 1 [mm] : 1,15 Valve Pocket Depth 2 [mm] : 1,15 Machined : with cut-out for oil jet Surface : Coated Supplementary Article/Supplementary Info 2 : with piston ring carrier Supplementary Article/Supplementary Info 2 : with cooling duct Top Land Height [mm] : 12 Production Number : 79 L 79 Piston Clearance [mm] : 0,07 Component Number : 1. R 1.75 CrK Component Number : 2. M 2.0 IFU Component Number : 3. DSF 3.0 Cr Packaging height [cm] : 12,80 Net Weight [g] : 800 Packaging length [cm] : 9,5 Packaging width [cm] : 9,50
