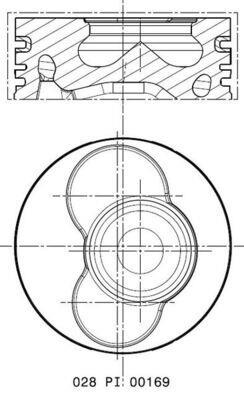

Piston

Manufacturer: MAHLE Cylinder Bore [mm] : 81,25 Length [mm] : 69,8 Compression Height [mm] : 45,75 Bolt Length [mm] : 66 Bolt Head Diameter [mm] : 26 Recess Depth 1 [mm] : 18,2 Recess Diameter [mm] : 37,9 Valve Pocket Depth 1 [mm] : 1,5 Valve Pocket Depth 2 [mm] : 1,5 Machined : with cut-out for oil jet Surface : Coated Supplementary Article/Supplementary Info 2 : with piston ring carrier Supplementary Article/Supplementary Info 2 : with cooling duct Top Land Height [mm] : 8,6 Fitting Position : for cylinder 1-2 Production Number : 81 L 91 Component Number : 1. R2.5 IW CrK Component Number : 2. M 2.0 IFU P Component Number : 3. DSF 3.0 Cr Packaging height [cm] : 12,80 Packaging length [cm] : 9,5 Packaging width [cm] : 9,50
