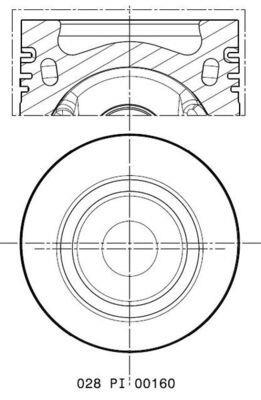

Piston
028 PI 00160 000
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 81
Length [mm] : 68,8
Compression Height [mm] : 45,8
Bolt Length [mm] : 66
Bolt Head Diameter [mm] : 26
Recess Depth 1 [mm] : 12,85
Recess Diameter [mm] : 50,9
Machined : with cut-out for oil jet
Surface : Coated
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Supplementary Article/Supplementary Info 2 : with cooling duct
Top Land Height [mm] : 12
Production Number : 81 L 178
Component Number : 1. R 1.75 CrK
Component Number : 2. M 2.0 IFU P
Component Number : 3. DSF 2.0 Cr
Packaging height [cm] : 12,80
Net Weight [g] : 570
Packaging length [cm] : 9,5
Packaging width [cm] : 9,50
