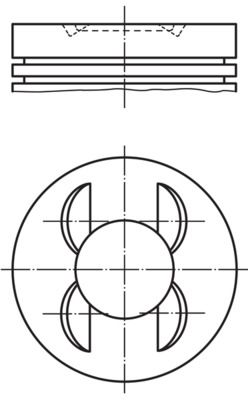

Piston
028 PI 00153 000
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 74,51
Length [mm] : 48
Compression Height [mm] : 31
Bolt Length [mm] : 47
Bolt Head Diameter [mm] : 19
Recess Depth 1 [mm] : 1,25
Recess Diameter [mm] : 50,5
Surface : EvoGlide® coated
Top Land Height [mm] : 5,8
Production Number : 74L62
Component Number : 1. R 1.2 N
Component Number : 2. M 1.2 Cr
Component Number : 3. 3S 2.0 N
Net Weight [g] : 343
Packaging length [cm] : 8,5
Packaging width [cm] : 8,50
Packaging height [cm] : 8,60
