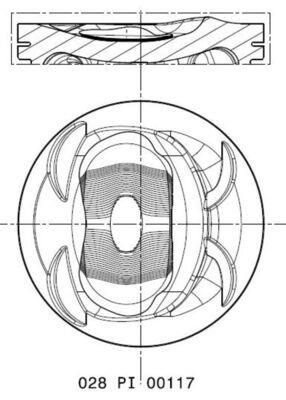

Piston
028 PI 00117 000
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 76,51
Length [mm] : 50,1
Compression Height [mm] : 29,12
Bolt Length [mm] : 52
Bolt Head Diameter [mm] : 19
Recess Depth 1 [mm] : 5,6
Valve Pocket Depth 1 [mm] : 3,8
Valve Pocket Depth 2 [mm] : 1,1
Surface : Coated
Supplementary Article/Supplementary Info 2 : without cooling duct
Top Land Height [mm] : 5,8
Production Number : 76 L 92
Piston Clearance [mm] : 0,070
Component Number : 1. R 1.2 N
Component Number : 2. M 1.5
Component Number : 3. 3S 2.0 N
