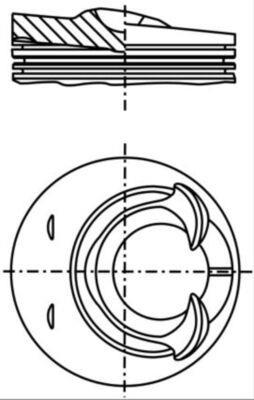

Piston
028 24 00
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 89,01
Length [mm] : 62,4
Compression Height [mm] : 35,24
Bolt Length [mm] : 52
Bolt Head Diameter [mm] : 20
Recess Depth 1 [mm] : 4,8
Recess Diameter [mm] : 51,5
Valve Pocket Depth 1 [mm] : 4,74
Valve Pocket Depth 2 [mm] : 0,17
Surface : Coated
Supplementary Article/Supplementary Info 2 : without cooling duct
Top Land Height [mm] : 12,42
Fitting Position : for cylinder 1
Fitting Position : for cylinder 3
Fitting Position : for cylinder 5
Connecting Rod Design : Trapezoidal Connecting Rod
Production Number : 89L 75
Piston Clearance [mm] : 0,065
Component Number : 1. R 1.2
Component Number : 2. NM 1.50 P
Component Number : 3. 3S 2.0 Cr
Packaging height [cm] : 12,80
Net Weight [g] : 547
Packaging length [cm] : 9,5
Packaging width [cm] : 9,50
