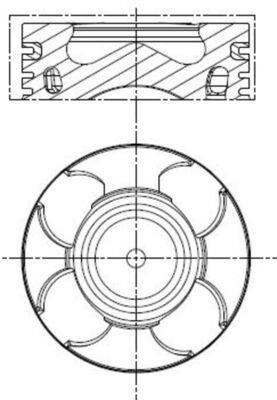

Piston
011 PI 00100 000
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 69,6
Length [mm] : 62,4
Compression Height [mm] : 40,43
Bolt Length [mm] : 57
Bolt Head Diameter [mm] : 23
Recess Depth 1 [mm] : 12,5
Recess Diameter [mm] : 38
Machined : with cut-out for oil jet
Surface : Phosphated and graphite-coated
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Supplementary Article/Supplementary Info 2 : with cooling duct
Top Land Height [mm] : 7,5
Connecting Rod Design : Trapezoidal Connecting Rod
Production Number : 69 L 47
Component Number : 1. R 2.0 CrK
Component Number : 2. M 1.5 N P
Component Number : 3. DSF 2.0 Cr
Packaging height [cm] : 12,80
Net Weight [g] : 504
Packaging length [cm] : 9,5
Packaging width [cm] : 9,50
