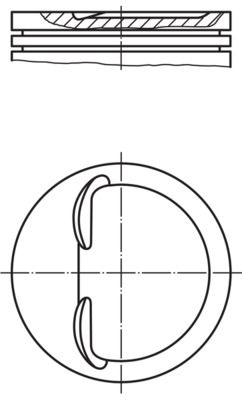

Piston
008 75 02
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 87,0
Length [mm] : 72,8
Compression Height [mm] : 33,3
Bolt Length [mm] : 63,2
Bolt Head Diameter [mm] : 22,0
Recess Depth 1 [mm] : 2,3
Recess Diameter [mm] : 71
Valve Pocket Depth 1 [mm] : 2,5
Supplementary Article/Supplementary Info 2 : without cooling duct
Top Land Height [mm] : 6,5
Production Number : 86 V 151
Piston Clearance [mm] : 0,03
Component Number : 1. R 1.5 Cr
Component Number : 2. M 1.75 IFU
Component Number : 3. DSF 3.0
Packaging height [cm] : 12,80
Net Weight [g] : 556
Packaging length [cm] : 9,5
Packaging width [cm] : 9,50
