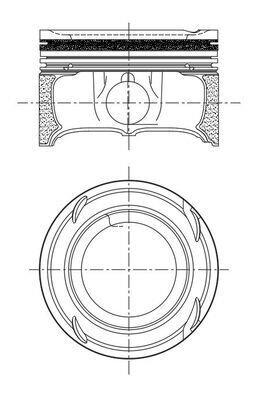

Piston
001 PI 00200 000
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 83
Length [mm] : 53,8
Compression Height [mm] : 33,8
Bolt Length [mm] : 54
Bolt Head Diameter [mm] : 20
Recess Depth 1 [mm] : 7,2
Recess Diameter [mm] : 53,8
Valve Pocket Depth 1 [mm] : 1,78
Valve Pocket Depth 2 [mm] : 1,63
Top Land Height [mm] : 5,56
Production Number : 83 L 199
Component Number : 1. R1.2 IF PVD
Component Number : 2.M1.0 IF PVD P
Component Number : 3. 3S 2.0 PVD
Packaging height [cm] : 12,80
Net Weight [g] : 417
Packaging length [cm] : 9,5
Packaging width [cm] : 9,50
