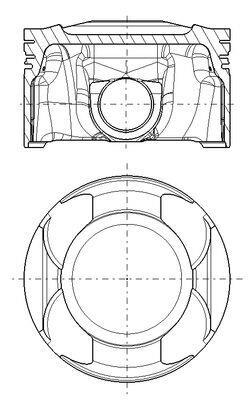

Piston
001 PI 00188 002
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 88,50
Length [mm] : 54,2
Compression Height [mm] : 32,3
Bolt Length [mm] : 50
Bolt Head Diameter [mm] : 22
Recess Depth 1 [mm] : 5,86
Recess Diameter [mm] : 56,88
Surface : EvoGlide® coated
Top Land Height [mm] : 5
Production Number : 88 L 111
Piston Clearance [mm] : 0,06
Component Number : 1. R 1.20 PVD
Component Number : 2. NM 1.50 PVD
Component Number : 3. 3S 2.00 PVD
