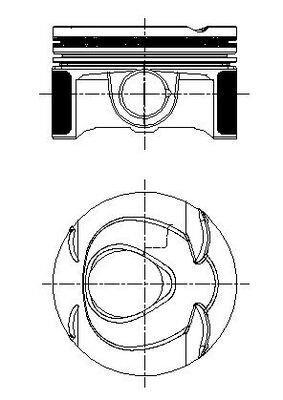

Piston
001 PI 00163 000
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 82,0
Length [mm] : 50
Compression Height [mm] : 30
Bolt Length [mm] : 56
Bolt Head Diameter [mm] : 20
Recess Depth 1 [mm] : 4,6
Valve Pocket Depth 1 [mm] : 3,4
Valve Pocket Depth 2 [mm] : 0,6
Surface : Hard Anodized
Top Land Height [mm] : 6,2
Production Number : 82 L 219
Piston Clearance [mm] : 0,06
Component Number : 1. R 1.20 N
Component Number : 2. NM 1.50 P
Component Number : 3. 3S 2.0 N
