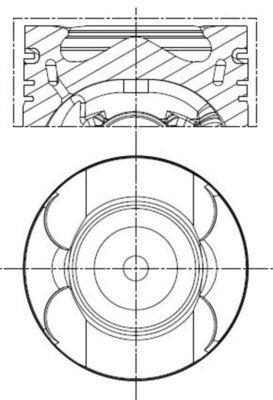

Piston
001 PI 00133 000
Catalog number:
Manufacturer:
MAHLE
Cylinder Bore [mm] : 83
Length [mm] : 75,5
Compression Height [mm] : 48,50
Bolt Length [mm] : 65,9
Bolt Head Diameter [mm] : 30
Recess Depth 1 [mm] : 13,2
Recess Diameter [mm] : 49,4
Machined : with cut-out for oil jet
Surface : Coated
Supplementary Article/Supplementary Info 2 : with piston ring carrier
Supplementary Article/Supplementary Info 2 : with cooling duct
Top Land Height [mm] : 10
Production Number : 83 L 178
Piston Clearance [mm] : 0,1
Component Number : 1. R2.00 IF CrK
Component Number : 2. M1.75 IFU P
Component Number : 3. DSF 2.00 Cr
Packaging height [cm] : 12,80
Packaging length [cm] : 9,5
Packaging width [cm] : 9,50
Net Weight [g] : 958
