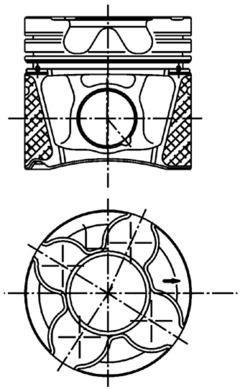

Piston
99535600
Catalog number:
Manufacturer:
KOLBENSCHMIDT
Production Number : 078118
Cylinder Bore [mm] : 78,31
Piston Clearance [mm] : 0,05
Compression Height [mm] : 47,83
Length [mm] : 71,83
Recess Depth 1 [mm] : 17,25
Valve Pocket Depth 1 [mm] : 1,38
Recess Diameter [mm] : 36
Component Number : 60711
Component Number : 60714
Component Number : 60717
Standard Size [STD]
Bolt Head Diameter [mm] : 26
Bolt Length [mm] : 58
Connecting Rod Design : Trapezoidal Connecting Rod
Fitting Position : for cylinder 4-6
