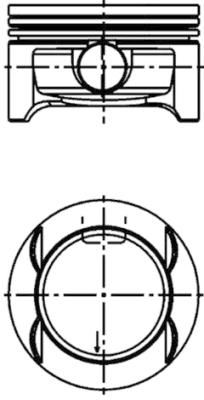

Piston
40386610
Catalog number:
Manufacturer:
KOLBENSCHMIDT
Production Number : 073067
Cylinder Bore [mm] : 73,65
Piston Clearance [mm] : 0,04
Compression Height [mm] : 23
Length [mm] : 44
Recess Depth 1 [mm] : 1,25
Valve Pocket Depth 1 [mm] : 1,33
Valve Pocket Depth 2 [mm] : 1,35
Recess Diameter [mm] : 52
Component Number : 63180
Component Number : 63183
Component Number : 63186
Bolt Head Diameter [mm] : 18
Bolt Length [mm] : 51
Repair Grade : 0,25
replace in sets only
