Piston
FP23-105400
Catalog number:
Manufacturer:
FRECCIA

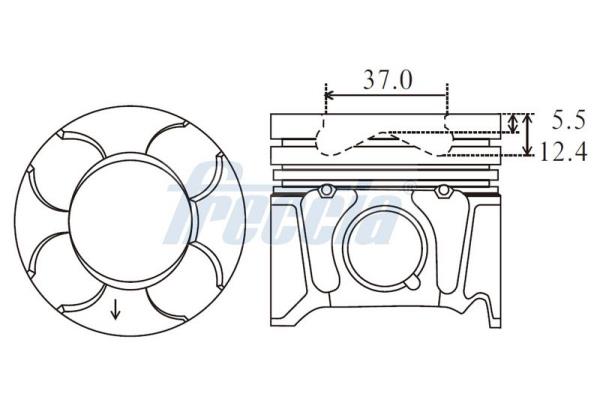

Recess Depth 1 [mm] : 12,4
Compression Height [mm] : 40,43
Cylinder Bore [mm] : 69,6
Bolt Head Diameter [mm] : 23
Bolt Length [mm] : 56,5
Standard Size [STD]
Length [mm] : 63,43
Material : Aluminium
Supplementary Article/Supplementary Info : with piston rings
Supplementary Article/Supplementary Info : with piston pin
