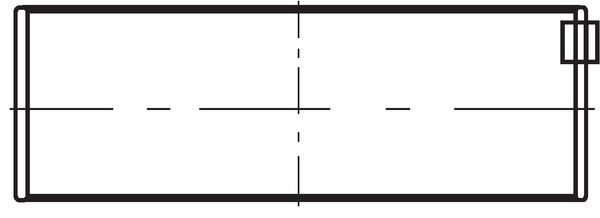

Connecting Rod Bearing
001 PL 20042 025
Catalog number:
Manufacturer:
MAHLE
Unit of measure : Pair
Oversize [mm] : 0,25
for bearing clearance from [mm] : 0,0065
to bearing clearance [mm] : 0,0295
for housing diameter from [mm] : 51,6
to housing diameter [mm] : 51,619
Width from [mm] : 21,5
Width to [mm] : 21,8
for wall thickness from [mm] : 1,93
to wall thickness [mm] : 1,936
for shaft diameter from [mm] : 47,95
to shaft diameter [mm] : 47,965
Packaging height [cm] : 2,60
Net Weight [g] : 52
Packaging length [cm] : 6,7
Packaging width [cm] : 6,70
General Information : the upper shell is marked with SPUTTER
