Brake Drum
61268
Catalog number:
Manufacturer:
PAGID

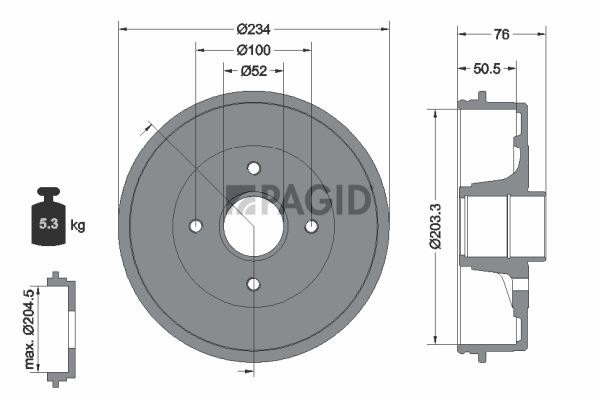

Outer brake drum diameter [mm] : 234
Total brake drum height [mm] : 76
Inner brake drum diameter [mm] : 203
Inner brake drum height [mm] : 51
max. brake drum reboring dimension [mm] : 204,5
Hole Arrangement/Number : 04/04
Bolt Hole Circle [mm] : 100
Centering Diameter [mm] : 52
Wheel Bolt Bore Diameter [mm] : 12
Supplementary Article/Supplementary Info 2 : with wheel hub
Supplementary Article/Supplementary Info 2 : without wheel bearing
Supplementary Article/Supplementary Info 2 : without wheel studs
Weight [kg] : 5,3
