Brake Drum
ASH56-00-0707C
Catalog number:
Manufacturer:
Ashika

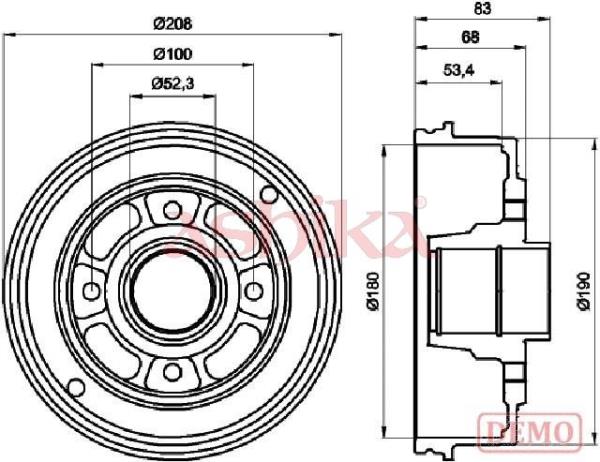

Bore Diameter [mm] : 51,884
Outer brake drum diameter [mm] : 208
max. brake drum reboring dimension [mm] : 181
Inner brake drum height [mm] : 53,4
Total brake drum height [mm] : 83
Number of Holes : 6
Bolt Hole Circle [mm] : 100
Flange Hole Diameter [mm] : 52
Surface : painted
Fitting Position : Rear Axle
Inner brake drum diameter [mm] : 180,2
Centering Diameter [mm] : 51,8
