Brake Disc
54543
Catalog number:
Manufacturer:
PAGID

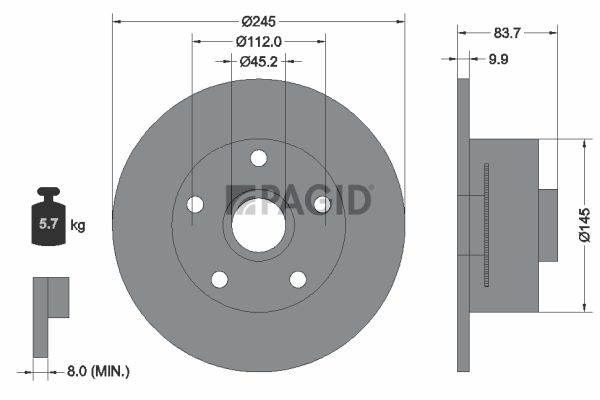

Brake Disc Type : solid
Outer diameter [mm] : 245
Brake Disc Thickness [mm] : 9,9
Height [mm] : 83,7
Minimum thickness [mm] : 8
Surface : Coated
Inner diameter [mm] : 135,5
Bolt Hole Circle [mm] : 112
Centering Diameter [mm] : 45,2
Hole Arrangement/Number : 05/05
Wheel Bolt Bore Diameter [mm] : 14
Supplementary Article/Supplementary Info 2 : with wheel hub
Supplementary Article/Supplementary Info 2 : without wheel bearing
Supplementary Article/Supplementary Info 2 : without wheel studs
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Number of Teeth, ABS ring : 45
Weight [kg] : 5,7
