Brake Disc
MDC1999
Catalog number:
Manufacturer:
MINTEX

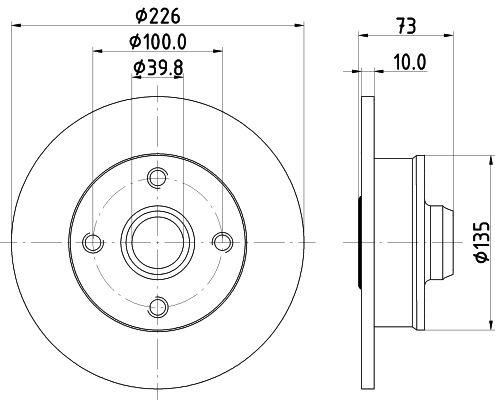

Brake Disc Type : solid
Outer diameter [mm] : 226
Brake Disc Thickness [mm] : 10
Height [mm] : 73
Minimum thickness [mm] : 8
Inner diameter [mm] : 121,3
Bolt Hole Circle [mm] : 100
Centering Diameter [mm] : 39,8
Hole Arrangement/Number : 04/04
Wheel Bolt Bore Diameter [mm] : 12
Supplementary Article/Supplementary Info 2 : without wheel hub
Supplementary Article/Supplementary Info 2 : without wheel bearing
Supplementary Article/Supplementary Info 2 : without wheel studs
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Number of Teeth, ABS ring : 43
Packaging length [cm] : 24,8
Packaging width [cm] : 24,8
Packaging height [cm] : 10,5
Weight [kg] : 4,5
