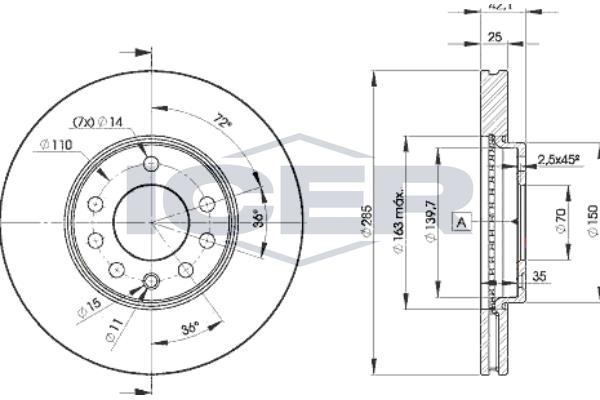

Brake Disc
78BD9003-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 22
Outer diameter [mm] : 285
Brake Disc Type : Vented
Height [mm] : 42
Centering Diameter [mm] : 70
Bolt Hole Circle [mm] : 110
Axle Version : Front
Technical Information Number : 78BD9003-2
Test Mark : E1 90R-02C0074/0976
Test Mark : E1 90R-02C0452/0083
Test Mark : E1190R02C01049/52502
Diameter [mm] : 70
Thickness [mm] : 25
Minimum thickness [mm] : 22
Hole Arrangement/Number : 5
Weight [kg] : 14164,00
