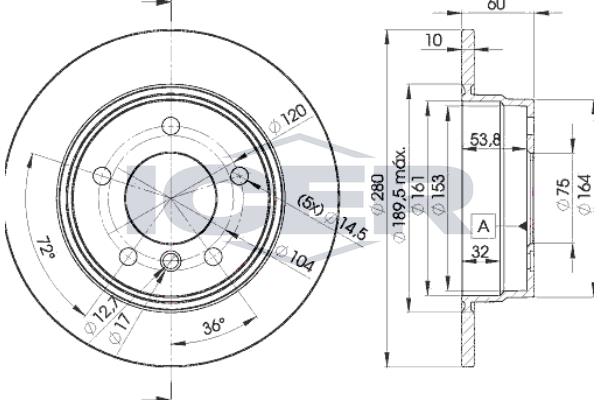

Brake Disc
78BD8936-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 8,4
Outer diameter [mm] : 280
Brake Disc Type : solid
Height [mm] : 60
Centering Diameter [mm] : 75
Bolt Hole Circle [mm] : 120
Axle Version : Rear
Technical Information Number : 78BD8936-2
Test Mark : E1 90R-02C0241/1150
Test Mark : E1 90R-02C0453/0073
Diameter [mm] : 75
Thickness [mm] : 10
Minimum thickness [mm] : 8,4
Hole Arrangement/Number : 5
Weight [kg] : 9224,000
