Brake Disc
78BD8766-2
Catalog number:
Manufacturer:
ICER

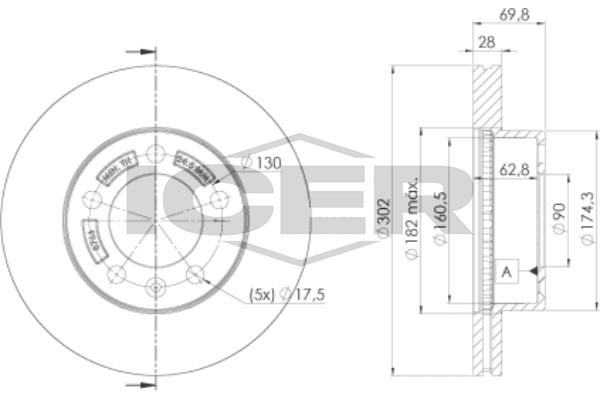

Brake Disc Thickness [mm] : 26
Outer diameter [mm] : 302
Brake Disc Type : Vented
Height [mm] : 69,9
Centering Diameter [mm] : 90
Bolt Hole Circle [mm] : 130
Axle Version : Front
Technical Information Number : 78BD8766-2
Test Mark : E1 90R-02C0074/1558
Test Mark : E1 90R-02C0452/0114
Test Mark : E1190R02C01049/52498
Diameter [mm] : 90
Thickness [mm] : 28
Minimum thickness [mm] : 26
Hole Arrangement/Number : 5
