Brake Disc
78BD8338-2
Catalog number:
Manufacturer:
ICER

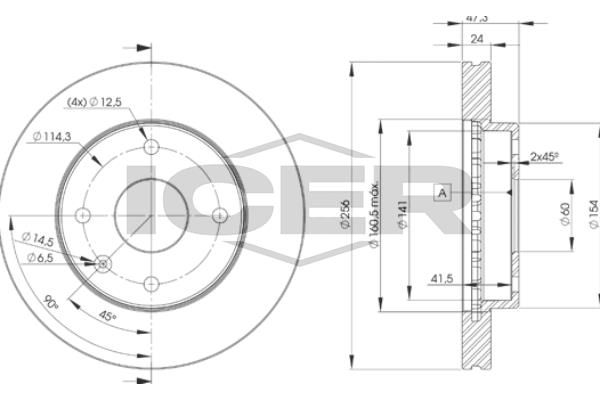

Brake Disc Thickness [mm] : 22
Outer diameter [mm] : 256
Brake Disc Type : Vented
Height [mm] : 47,3
Centering Diameter [mm] : 60
Bolt Hole Circle [mm] : 114,3
Axle Version : Front
Technical Information Number : 78BD8338-2
Test Mark : E1 90R-02C0074/0119
Test Mark : E1 90R-02C0452/0077
Test Mark : E1190R02C01049/52493
Diameter [mm] : 60
Thickness [mm] : 24
Minimum thickness [mm] : 22
Hole Arrangement/Number : 4
