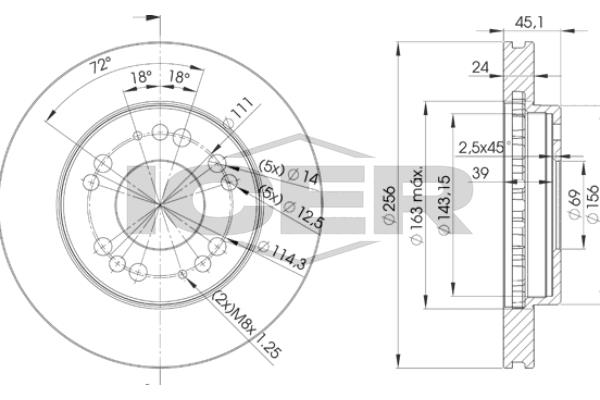

Brake Disc
78BD8110-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 22,4
Outer diameter [mm] : 256,5
Brake Disc Type : Vented
Height [mm] : 45,1
Centering Diameter [mm] : 69
Bolt Hole Circle [mm] : 114,3
Axle Version : Front
Technical Information Number : 78BD8110-2
Test Mark : E1 90R-02C0074/0484
Diameter [mm] : 69
Thickness [mm] : 24
Minimum thickness [mm] : 22,4
Hole Arrangement/Number : 5
Weight [kg] : 9210,000
