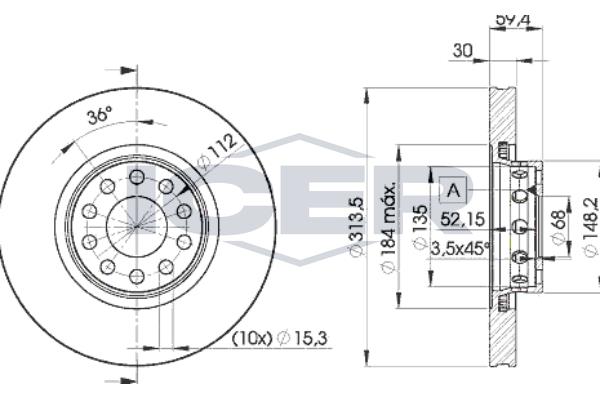

Brake Disc
78BD8015-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 28
Outer diameter [mm] : 314
Brake Disc Type : Vented
Height [mm] : 59
Centering Diameter [mm] : 68
Bolt Hole Circle [mm] : 112
Axle Version : Front
Technical Information Number : 78BD8015-2
Diameter [mm] : 68
Thickness [mm] : 30
Minimum thickness [mm] : 28
Hole Arrangement/Number : 5
