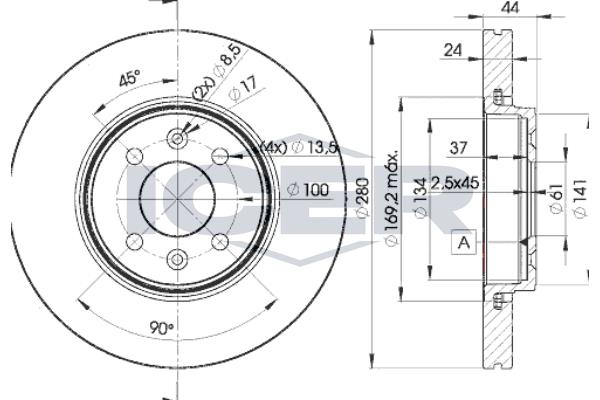

Brake Disc
78BD7829-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 22,5
Outer diameter [mm] : 280
Brake Disc Type : Vented
Height [mm] : 44
Centering Diameter [mm] : 61
Bolt Hole Circle [mm] : 100
Axle Version : Front
Technical Information Number : 78BD7829-2
Test Mark : E1 90R-02C0289/1129
Test Mark : E1 90R-02C0433/0090
Diameter [mm] : 61
Thickness [mm] : 24
Minimum thickness [mm] : 22,5
Hole Arrangement/Number : 4
