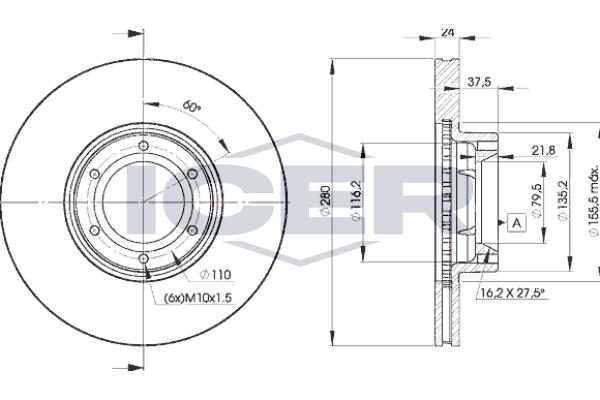

Brake Disc
78BD6847-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 21
Outer diameter [mm] : 280,2
Brake Disc Type : Vented
Height [mm] : 61,5
Centering Diameter [mm] : 79,5
Bolt Hole Circle [mm] : 110
Axle Version : Front
Technical Information Number : 78BD6847-2
Test Mark : E1 90R-02C0074/0011
Test Mark : E1 90R-02C0452/0118
Diameter [mm] : 79,5
Thickness [mm] : 24
Minimum thickness [mm] : 21
Hole Arrangement/Number : 6
