Brake Disc
78BD6402-1
Catalog number:
Manufacturer:
ICER

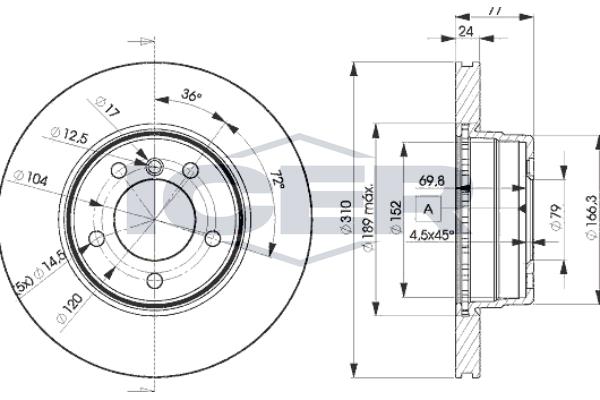

Brake Disc Thickness [mm] : 22,4
Outer diameter [mm] : 310
Brake Disc Type : Vented
Height [mm] : 77
Centering Diameter [mm] : 79
Bolt Hole Circle [mm] : 120
Axle Version : Front
Technical Information Number : 78BD6402-1
Test Mark : E1 90R-02C0074/1148
Test Mark : E1190R02C01049/52500
Diameter [mm] : 79
Thickness [mm] : 24
Minimum thickness [mm] : 22,4
Hole Arrangement/Number : 5
Weight [kg] : 8428,000
