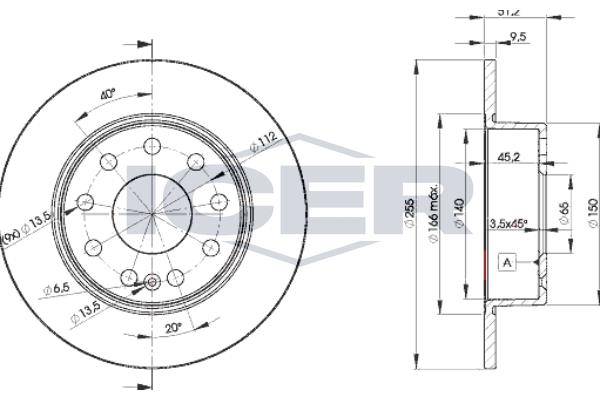

Brake Disc
78BD5616-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 7
Outer diameter [mm] : 256
Brake Disc Type : solid
Height [mm] : 51,5
Centering Diameter [mm] : 65
Bolt Hole Circle [mm] : 112
Axle Version : Rear
Technical Information Number : 78BD5616-2
Test Mark : E1 90R-02C0100/0995
Test Mark : E1 90R-02C0415/0089
Test Mark : E1190R02C01049/52491
Diameter [mm] : 65
Thickness [mm] : 10
Minimum thickness [mm] : 7
Hole Arrangement/Number : 9
Weight [kg] : 7390,000
