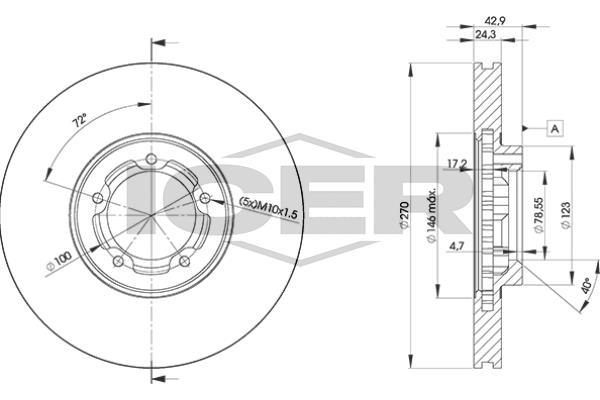

Brake Disc
78BD5611-2
Catalog number:
Manufacturer:
ICER
Brake Disc Thickness [mm] : 22,2
Outer diameter [mm] : 270
Brake Disc Type : Vented
Height [mm] : 42,9
Centering Diameter [mm] : 78,6
Bolt Hole Circle [mm] : 100
Axle Version : Front
Technical Information Number : 78BD5611-2
Test Mark : E1 90R-02C0074/1454
Test Mark : E1 90R-02C0452/0086
Test Mark : E1190R02C01049/43391
Diameter [mm] : 78,6
Thickness [mm] : 24,3
Minimum thickness [mm] : 22,2
Hole Arrangement/Number : 5
